PALLET NAILING MACHINES

Easily adjustable to fit your needs.
 Line components

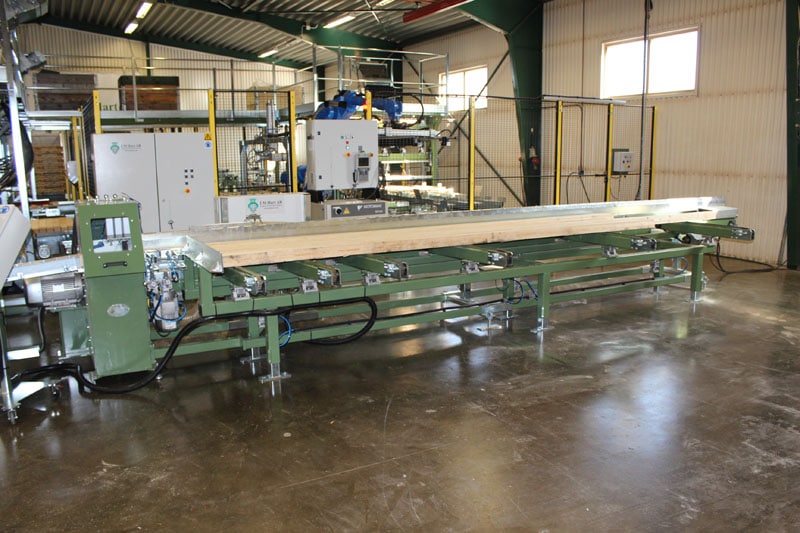

OPTIMIZING BLOCK CUTTER OKKR-2006

-Fully automated block cutting machine for pallet legs. Maximum length of raw material 6m.

  • 0 machine operator
  • 36 blocks/min

The machine suits all type of pallet production. OKKR-2006 can operate as a separate standing machine or as part of a production line.

How does it work?

The machine is fed block material on the chain infeed conveyor. The material is fed automatically and the machine cuts the blocks into the preinstalled length. OKKR-2006 can be programmed to cut several different lengths of blocks from the original piece of raw material. Maximum length of the raw material is 6m.

SPECIFICATION MACHINE

All Mychrome machines conform to European standards

Machine specification facts

Standard performance

Operators

0

Length

7,5 m

Width

2,5 m

Height

1,8 m

Power

7 kW, 3x400 V+N

Pneumatic system

7 bar compressed dried air: 450 L/min

Should be filled and controlled

Lubrication points

Machine capacity

36 blocks/min

Standard equipment

1 electric motor for saw blade
1 electric motor for material infeed
1 electric motor for chain infeed

SPECIFICATION MATERIAL

Material

Minimum

Maximum

Length

600 mm

6000mm

Width

75 mm

150 mm

Thickness

75 mm

100 mm
